# Sales Opportunity Object Modeling and Forms
In the previous steps, we have defined the customer object and its attributes, and defined its list, creation, and update forms. Now we will proceed with the modeling and form definition for sales opportunities.
Referring to CRM System Design, we will define the attributes of sales opportunities as follows:
# Sales Opportunity Table (SalesOpportunities)
# Model Definition
# Interaction Record Table (InteractionRecord)
Field Name | Type | Nullable | Default | Options | Remarks | Related Object Type |
---|---|---|---|---|---|---|
name | STRING | No | None | None | Interaction record key | None |
interactionType | STRING | No | None | None | Interaction type | None |
interactionDate | LOCAL_DATE | No | None | None | Interaction date | None |
notes | STRING | Yes | None | None | Notes | None |
# Task Table (Task)
Field Name | Type | Nullable | Default | Options | Remarks | Related Object Type |
---|---|---|---|---|---|---|
name | STRING | No | None | None | Task key | None |
description | STRING | No | None | None | Description | None |
dueDate | LOCAL_DATE | No | None | None | Due date | None |
status | STRING | No | None | None | Task status | None |
# Sales Opportunity Table (SalesOpportunities)
Field Name | Type | Nullable | Default | Options | Remarks | Related Object Type |
---|---|---|---|---|---|---|
name | STRING | No | None | None | Sales opportunity key | None |
customer | DOMAIN_OBJECT | No | None | None | Related customer | Customers |
stage | STRING | No | None | None | Opportunity stage | None |
expectedAmount | BIG_DECIMAL | No | None | None | Expected amount | None |
expectedCloseDate | LOCAL_DATE | No | None | None | Expected closing date | None |
interactionRecords | DOMAIN_OBJECT_LIST | Yes | None | None | Customer interaction records | InteractionRecord |
tasks | DOMAIN_OBJECT_LIST | Yes | None | None | Customer interaction records | Task |
Here's the creation process and related explanations:
- The customer field will be associated with the customer object we defined
earlier. When creating this field, you need to select the type as
DOMAIN_OBJECT
and set its reference object type to Customers. - We have set options for the interactionType field of InteractionRecord, the status field of Task, and the stage field of SalesOpportunities. You can directly input options in the Options column, pressing enter to input each option.
- SalesOpportunities references the interaction record table and task table,
used to record a specific interaction with the customer or a to-do task. This
type of object relationship is configured using
DOMAIN_OBJECT_LIST
.
# Form Definition
After completing the model definition, we will continue to define its list, creation, and update forms. The steps are as follows:
# Optimizing Customer Related Object Display
From the video, we can see that the Customer field in the sales opportunity list
displays its ID rather than its name, which is not user-friendly. Now we will
use the extInfo feature of DomainClass to set the Customer object to display its
name
attribute in other object forms that reference it.
The specific steps are as follows:
In the extension information field of the DomainClass definition for the Customer model, set:
{
"labelField": "name"
}
2
3
This specifies that the name
attribute of the Customer object will be
displayed in forms of other objects that reference it.
# Using Sub-tables for Related Data Maintenance
The following data has a one-to-many relationship with SalesOpportunities, and the platform supports displaying related objects in sub-table form by default.
- Interaction Records Table (InteractionRecords)
- Tasks Table (Tasks)

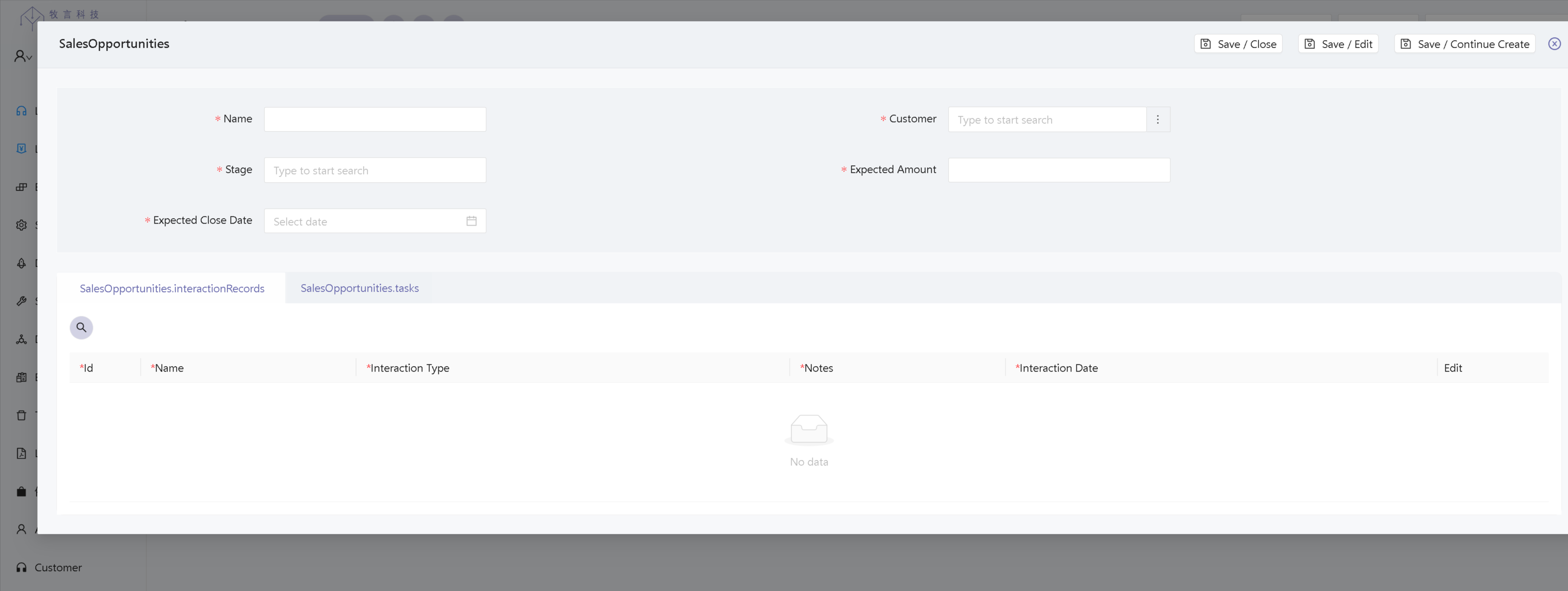

However, when you click the create button on the SalesOpportunities list page and open the creation form, you'll find that you can't create related InteractionRecord and Task objects. The specific interface is shown in the image below:
This is because we haven't granted the user permission to create and edit InteractionRecord and Task objects.
Let's fix this permission issue. The solution is to create Create and Update forms for the InteractionRecord and Task models, and set their Enable Roles to the list of roles that should have permission.
The specific operation is shown in the video below, which also demonstrates data maintenance of the SalesOpportunity object after granting user permissions:
